High quality TFT LCD panels with high efficiency , low power consumption LED back light source, energy saving and environment friendly;
Durable electronics components to ensure reliable and stable function even in long time operation;
Latest multi point capacitive touch screen adopted, Surface hardness MoHS 7 with anti-scratch technology;
Full flat surface supporting front IP 65, dust proof, very easy for installation and maintenance;
Various interface options: VGA, HDMI, Display Port;
Customization service available;
Model Name | AMG-24OPXB01T1 |
Screen Size | 23.8" |
Active Display Area(mm) | 527.04(H)x296.46(V) |
Pixel Pitch(mm) | 0.2745(H)x0.2745(V) |
Display Mode | Normally Black |
Display Resolution(pixel) | 1920x1080 |
Contrast Ratio | 1000:1 |
Brightness | 250nits |
Backlight | LED |
Viewing Angles(CR=10) | 178(H);178(V) |
Response Time(Typ.Tr+Tf) | 14ms |
Touch Screen | PCAP Touch(10 points) |
Light Sensor | Optional |
Tempered Glass | Optional |
Dimension(VxHxT) | 575.6x340.5x43 |

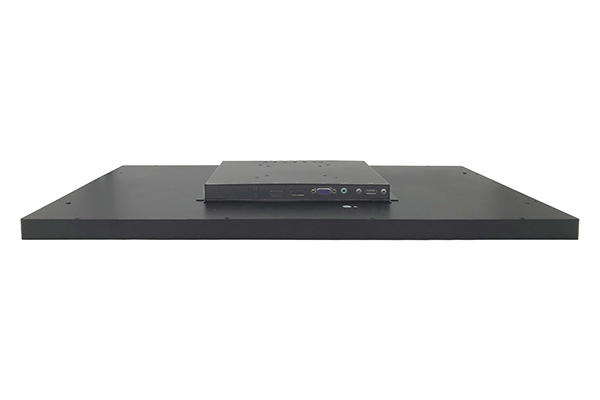

Signal Connector | VGA/HDMI/DP/Audio/USB |
Power Input | DC 12V |
Touch Controller | USB |
Operating Systems Support | Windows 7/8/10 / Linux(optional) |
Operating Temperature | 0~50℃(non-condensation) |
Storage Temperature | -20~60℃(non-condensation) |
Relative Humidity | 5(%RH)~90(%RH) |
