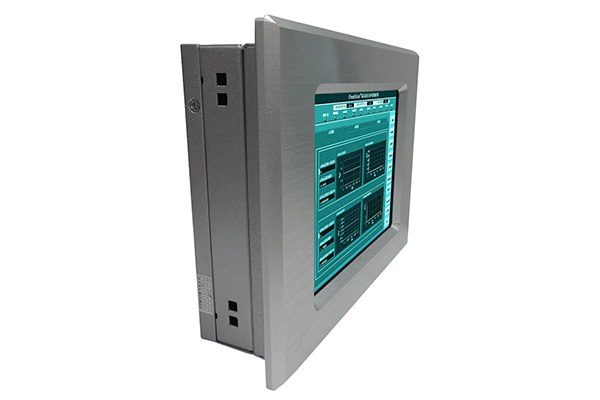

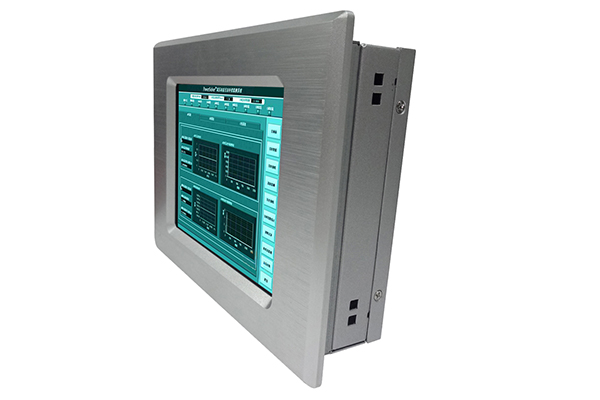

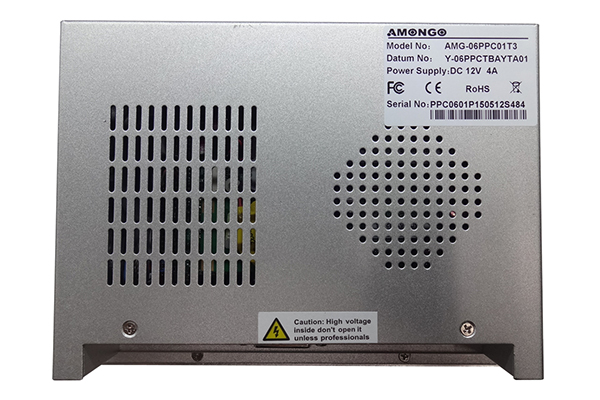

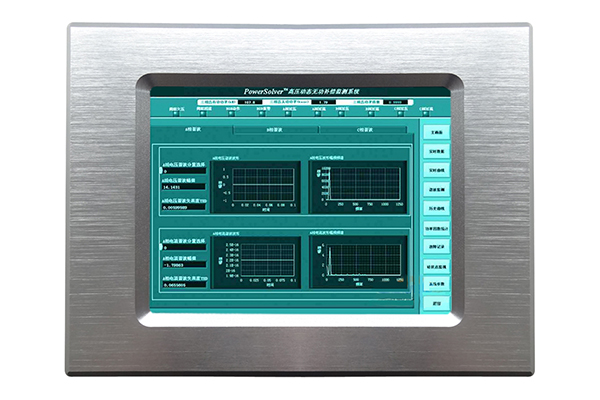

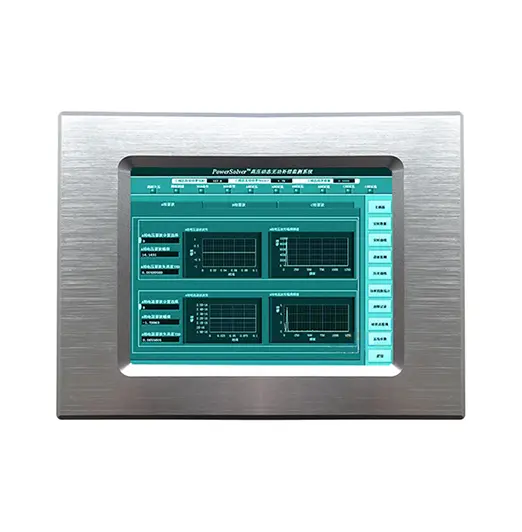

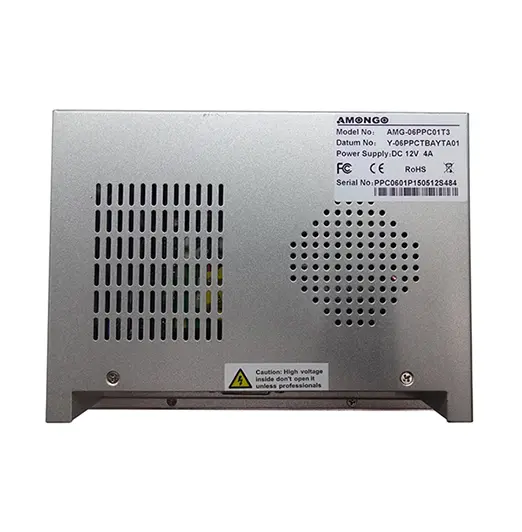

6.5 Inch Panel Mount Industrial Panel PC

  • 6.5 Inch Panel Mount Industrial Panel PC
  • The 6.5 inch IPC AMG-06PPC01T3 from Amongo is a good option for industrial application with below benefits:
    • Branded LCD panels with perfect image quality and wide viewing angles
    • High performance Intel processor, fast access hard drives, long-life power supplies;
    • Various touchscreen technologies, like PCAP, Resistive, IR etc.;
    • Rugged structure design with front IP65 aluminum bezel for waterproof;
    • Easy installation for panel mount or embedded mount;
    • Suitable used as operator panel for machine control;
    • Designed to endure extreme conditions like heat, cold, moisture, dust, vibrations, acids etc.;
    Contact Us

Specifications

Model Name

AMG-06PPC01T3

CPU

Intel ® Bay Trail-M N2930 SOC Processor 1.83G

Memory

DDR3L 1333MHz 4GB

HDD

M-sata 32G

DVI port

1xDVI port

COM ports

4xCOM (optional)

USB ports

3xUSB2.0 (1xUSB 3.0)

Ethernet ports

2xRTL8111G PCI-E Gigabit LAN

Audio

1xLine-out port

Display Size

6.5"

Active Display Area(mm)

132.48(H)x99.36(V)

Max Resolution

640x480

Support Color

16.2M/262K colors

Luminance(CD/M2)

600

Contrast Ratio

600:1

Pixel Pitch (mm)

0.207(H)x0.207(V)

Display Mode

Normally White

Viewing Angle

160(H);140(V)

Backlight

LED

Type

Resistive Touchscreen

Use connector

4pin USB2.0

Input Voltage

 DC 9-24V IN

Output Rating

20W(max)

Dimension(VxHxT)

208x158x53

Operating  Temperature

-30~80℃

Storage  Temperature

-30~80℃

Relative Humidity

5[%RH]~90[%RH]
