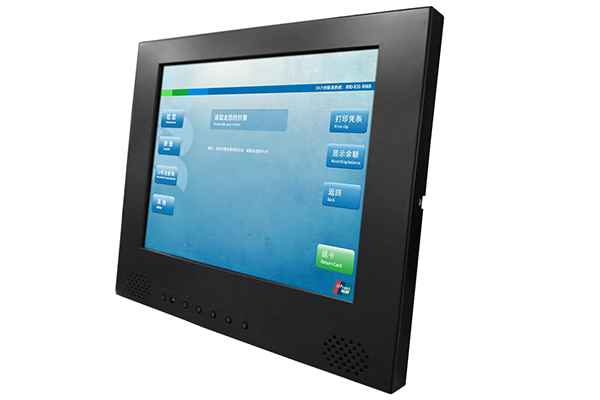

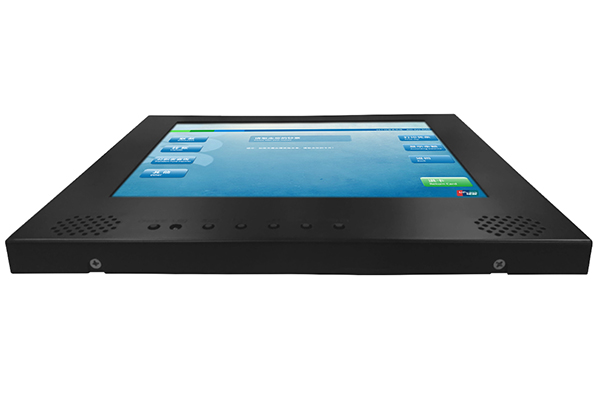

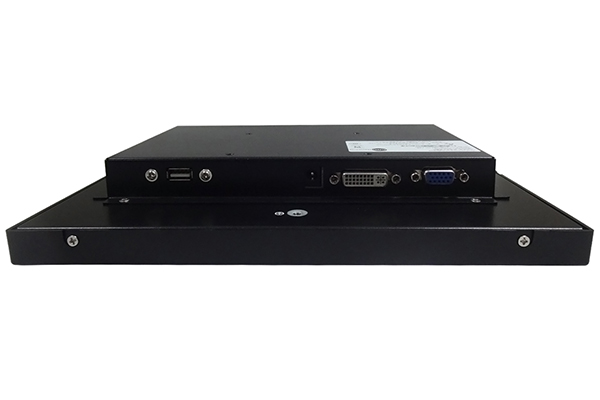

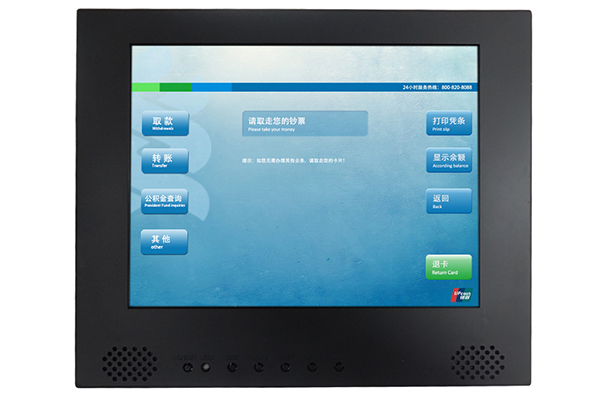

9.7 Inch Touchscreen LCD Monitor

  • 9.7 Inch Touchscreen LCD Monitor
  • Our industrial PCAP touch LCD monitor AMG-09IPGD02T1 is customized with below features:
    • Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for a reliable 24/7 continuous operation;
    • High-end mechanical design to meet tough environmental conditions and requirements;
    • Built with a microwave sensor for auto light up when people detected;
    • Customization service available;
    Contact Us

Specifications

Model Name

AMG-09IPGD02T1

Screen Size

9.7"

Active Display Area (mm)

196.61(H)x147.46(V)

Pixel Pitch (mm)

0.192(H)x0.192(V)

Display Mode

Normally black

Display Resolution (pixel)

1024x768

Contrast Ratio

900:1

Display Color

16.2M

Brightness (CD/㎡)

260nits

Backlight

LED

Viewing Angles (CR =10)

170(H);170(V)

Response Time(Typ.Tr+Tf)

20ms

Signal Connector

VGA/DVI-D/USB

Power Consumption

DC 12V

Dimension(VxHxT)

259x215x38.8

Operating Temperature

0~50℃

Storage Temperature

-20~60℃

Relative Humidity

5(%RH)~90(%RH)

Touch Screen

PCAP Touch(10 points)
