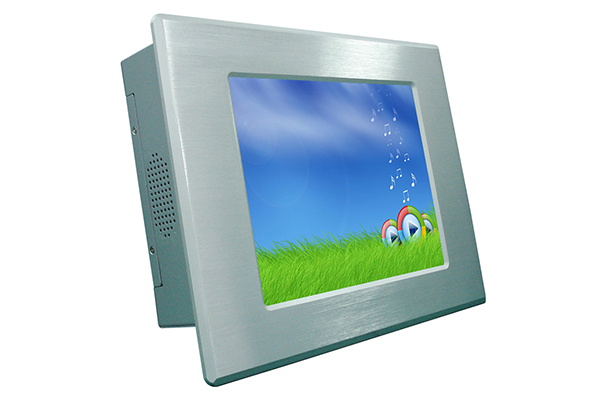

12.1 Inch Panel Mount Industrial Panel PC

  • 12.1 Inch Panel Mount Industrial Panel PC
  • The 12.1 inch industrial panel computer AMG-12PPC01T1 from Amongo is a good option for industrial application with features as below:
    • Industrial-grade LCD panels with perfect image quality and wide viewing angles, low power consumption LED backlight;
    • High performance processor, fast access hard drives, long-life power supplies for stable function in long time workload;
    • Various touchscreen technologies, like PCAP, Resistive etc.;
    • Robust structure design with aluminum bezel for front IP65 waterproof;
    • Easy installation for panel mount or embedded mount;
    • Meet with requested sustainability tests and reliability test to survive in the toughest application environment;
    Contact Us

Specifications

Model Name

AMG-12PPC01T1

CPU

Intel Atom N270 (1.6GHz)CPU

CHIPSET

Intel 945GSE+ICH7

Memory

2GB DDR II SDRAM

HDD

2.5" 320G HDD

PS/2 port

NA

VGA port

1 x VGA port

COM ports

1x RS232 port

USB 2.0 ports

3 x USB2.0

Ethernet ports

1x Gigabit LAN

Audio

Line-out/Optical SPDIF_out connector

Display Type/ Size(Diagonal)

12.1"

Active Display Area(mm)

246(H)x184.5(V)

Max Resolution

800x600

Display Color

16.2M/262K

Luminance(cd/m )

400

Contrast Ratio

700:1

Pixel Pitch (mm)

0.3075x0.3075

Viewing Angle

Normally White

 Display Mode

110(H);140(V)

Response Time(Typ.Tr+Tf)

35ms

Dimension(VxHxT)

379x284x78

Type

Resistive Touchscreen

Use connector

4pin USB2.0

Input Voltage

AC 100-240V 4A 47~63Hz

Output Rating

72W(max)

Output Voltage

+12V @6A;

Operating  Temperature

-30~80℃

Storage  Temperature

-30~80℃

Relative Humidity

5[%RH]~90[%RH]
