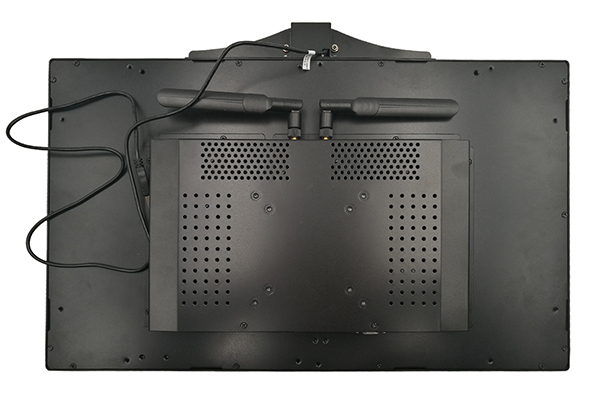

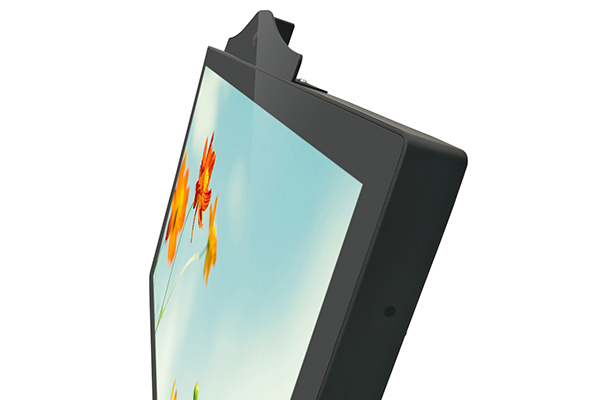

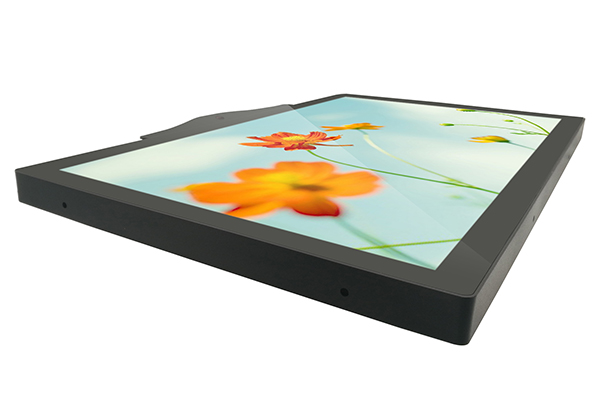

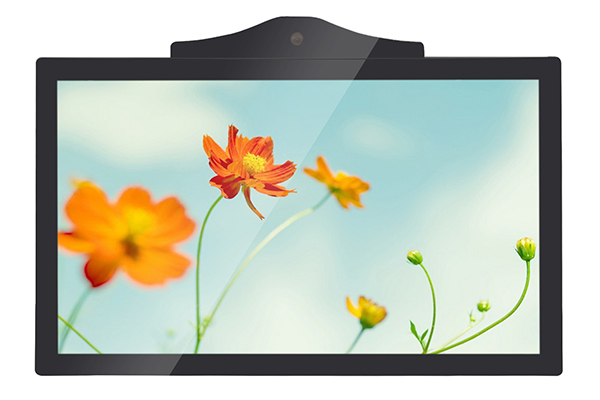

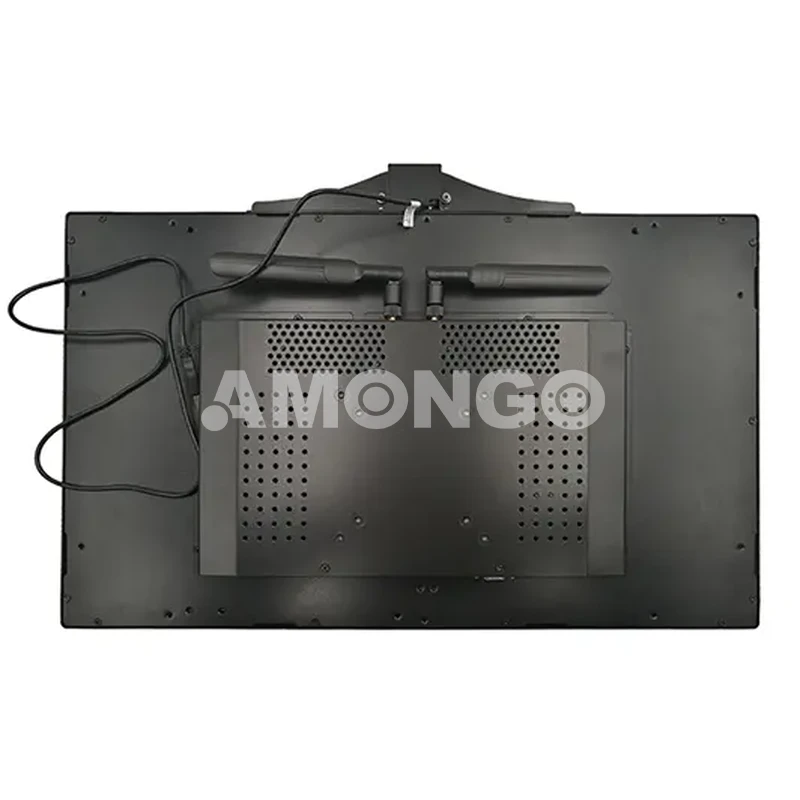

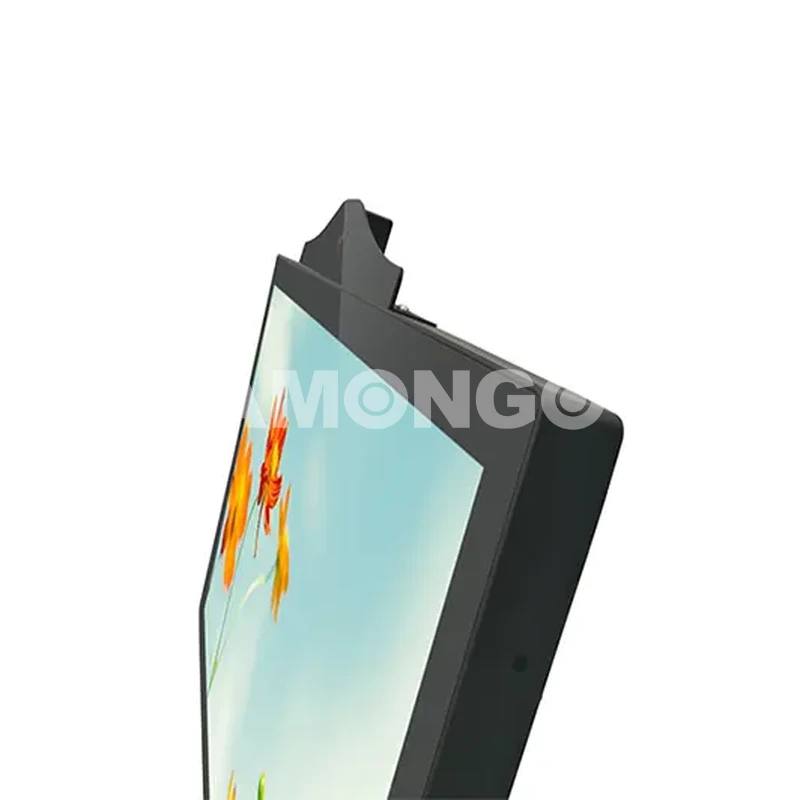

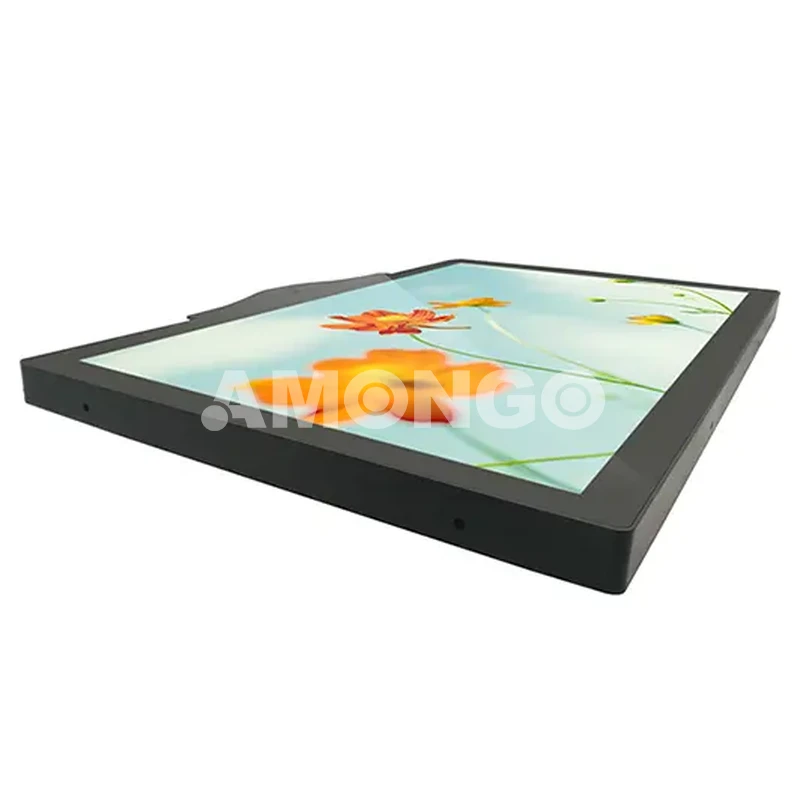

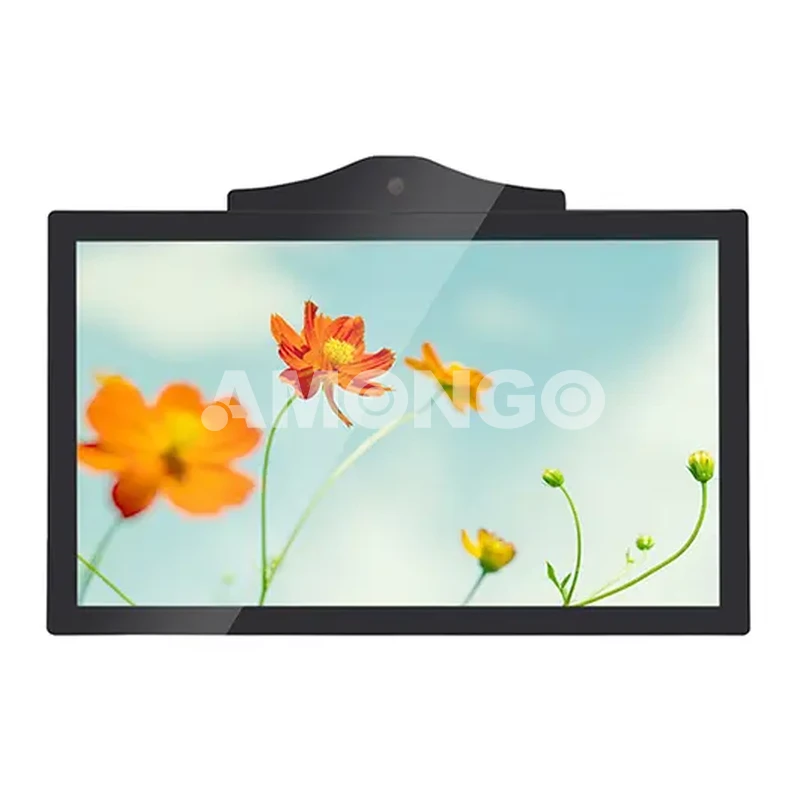

21.5 Inch Customized Industrial Lcd Panel PC

  • 21.5 Inch Customized Industrial Lcd Panel PC
  • The All-in-one Android panel PC AMG-21PPC01TA made by Amongo is welcomed with the following features:
    • Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components adopted for a reliable 24/7 long time running;
    • Durable mechanical design to meet tough environmental requirements;
    • Full flat surface design, for easy installation and maintenance;
    • Front IP65 water proof, vandal proof, dust proof;
    • Support HD camera for IoT application;
    • Customization service available;
    Contact Us

Specifications

Model Name

AMG-21PPC01TA

CPU

RK3368 Eight Core ARM-A53 1.5GHz

RAM

2GB(4GB optional)

ROM

8GB(16/32GB optional)

OS

Android 5.1.1

RS232 Port

1 x RS232

HDMI

1 x HDMI

USB Ports

3 x USB

SD Card

Support

Ethernet

4G/3G, Ethernet, WiFi, GPS, Bluetooth optional

Screen Size

21.5"

Active Area(mm)

476.64(H)x268.11(V)

Pixel Pitch(mm)

0.24825(H)x0.24825(V)

Display Resolution

1920x1080

Display Color

Normally Black

Brightness(cd/㎡)

250nits

Contrast Ratio

3000:1

Backlight

LED

Viewing Angles

178(H);178(V)

Response Time(Tr+Tf)

18ms

Touch Screen

PCAP Touch(10 points)

Camera

Support

Dimension(VxHxT)mm

518x353.9x53

Operating Temperature

-30~85℃(non-condensation)

Storage Temperature

-30~85℃(non-condensation)

Relative Humidity

5~90(%RH)
