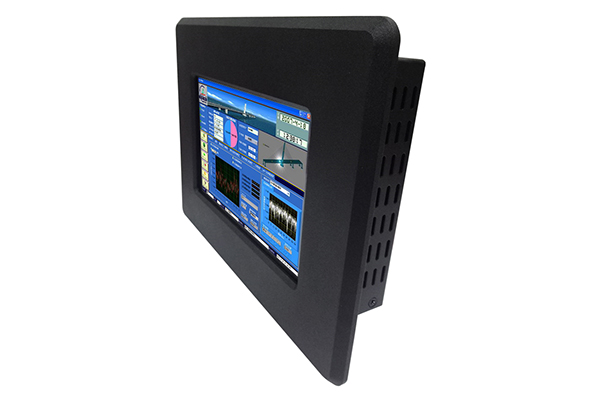

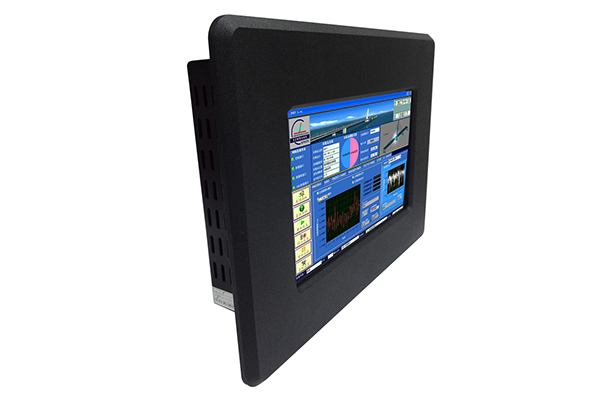

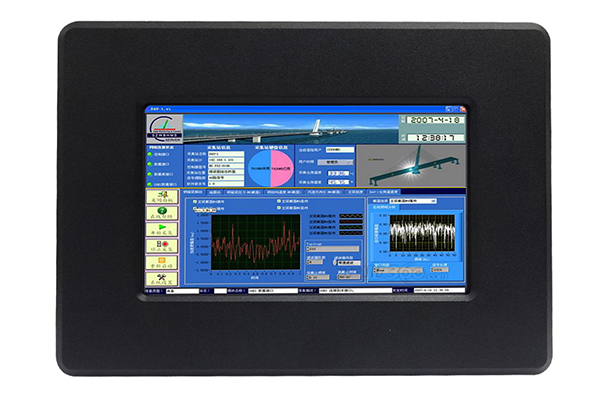

7 Inch VESA/Wall Mount Industrial Panel PC

  • 7 Inch VESA/Wall Mount Industrial Panel PC
  • The industrial grade wall mount panel computer AMG-07PPC01T1 made by Amongo comes with the following advantages:
    • Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components adopted for a reliable 24/7 long time running;
    • Wide range of touchscreen technologies including PCAP, Resistive etc.
    • Durable mechanical design to meet tough environmental conditions and requirements;
    • IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
    • Tailor-made solution according to client requirements;
    Contact Us

Specifications

Model Name

AMG-07PPC01T1

CPU

Intel ® Bay Trail-M N2930 SOC Processor 1.83G

Memory

DDR3L 1333MHz 4GB

HDD

Msata 32G

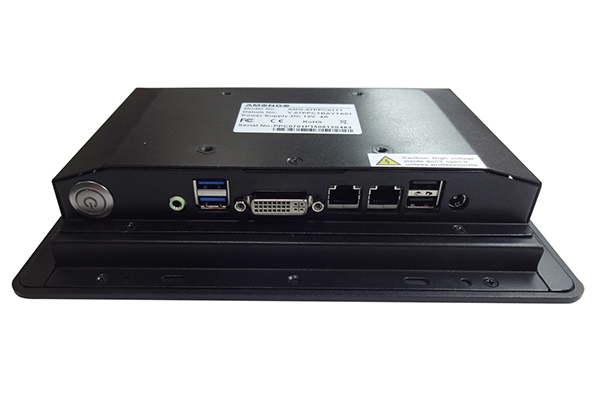

DVI port

1xDVI port

COM ports

4xCOM (optional)

USB ports

3xUSB2.0 (1xUSB 3.0)

Ethernet ports

2xRTL8111G PCI-E Gigabit LAN

Audio

1xLine-out port

Display Size

7"

Active Display Area(mm)

152.40(H)x91.44(V)

Max Resolution

800x480

Support Color

16.2M/262K colors

Luminance(CD/㎡)

350

Contrast Ratio

500:1

Pixel Pitch (mm)

0.1907(H)x0.1907(V)

Display Mode

Normally White

Viewing Angle

110(H);130(V)

Backlight

LED

Type

Resistive Touchscreen

Use connector

4pin USB2.0

Input Voltage

 DC 9-24V IN

Output Rating

20W(max)

Dimension(VxHxT)

234.4x173.4x48

Operating  Temperature

-20~70℃

Storage  Temperature

-20~70℃

Relative Humidity

5[%RH]~90[%RH]
