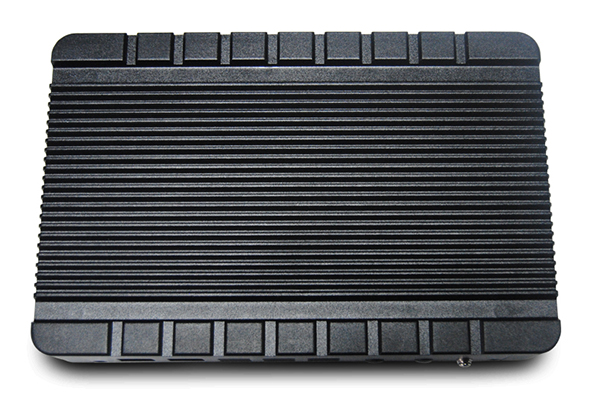

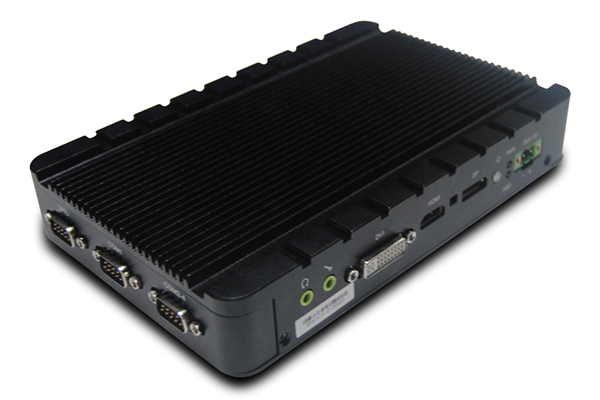

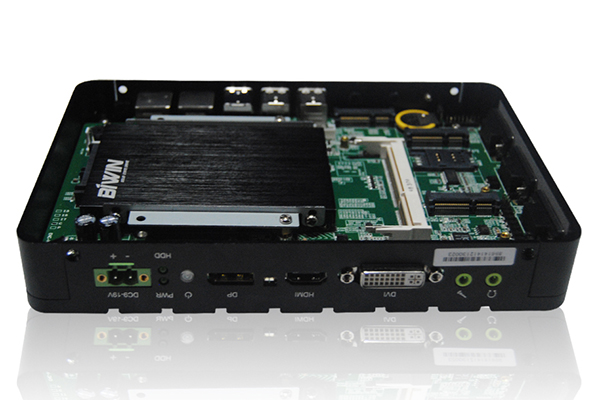

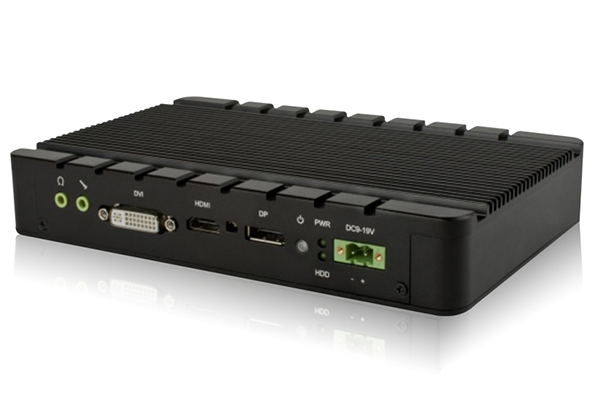

Ultra Slim Fanless Box PC

Specifications

Model	AMG-B886
CPU	Intel® Atom™ Cedar Trail processor N2600 / 2800
FSB	800 / 1066MHz
Chipset	CG82NM10
BIOS	System BIOS: SPI BIOS
Architecture	DDR3L-800MT/s and 1066MT/s
Capacity	Onboard 2GB
Graphic Controller	Intel®3600 series graphic media accelerator
LCD/DVI/LVDS	N/A
HDMI	Support HDMI 1.3, type A, 19pin
HDMI	Max. Resolution: 2560 * 1600
VGA	1*DB15
VGA	Max. Resolution: 1920 * 1200
Dual Display	VGA+HDMI
Controller	LAN 1: Intel 82583 GbE Lan
	LAN 2: N/A
	Realtek HD ALC662 audio decoder(LINEOUT+ Mic )
	WINBOND 83627DHG
Watch Dog Timer	Timer 1 - 255 sec./min., support system reset
Smart Fan	Fan-less
USB	6* USB 2.0/1.1 compatible
Serial Port	1* RS232
Mini-PCIe	1* Mini-PCIe socket, support WIFI/3G wireless network
UIM Socket	1* standard SIM card socket
SATA	1* SATAII
Power Type	Wide range voltage input: DC12-24V
Power Consumption	Typical power: 12W
Operating Environment	-20°C ~ 60°C
Storage Environment	-40°C ~ 85°C
Operating Humidity	10% ~ 90% relative humidity, non-condensing
Storage Humidity	10% ~ 90% relative humidity, non-condensing
Dimensions	145mm * 135mm * 32mm (LWH)
Weight	1.28Kg
Regulatory Compliance	FCC, CE, RoHS compliant
